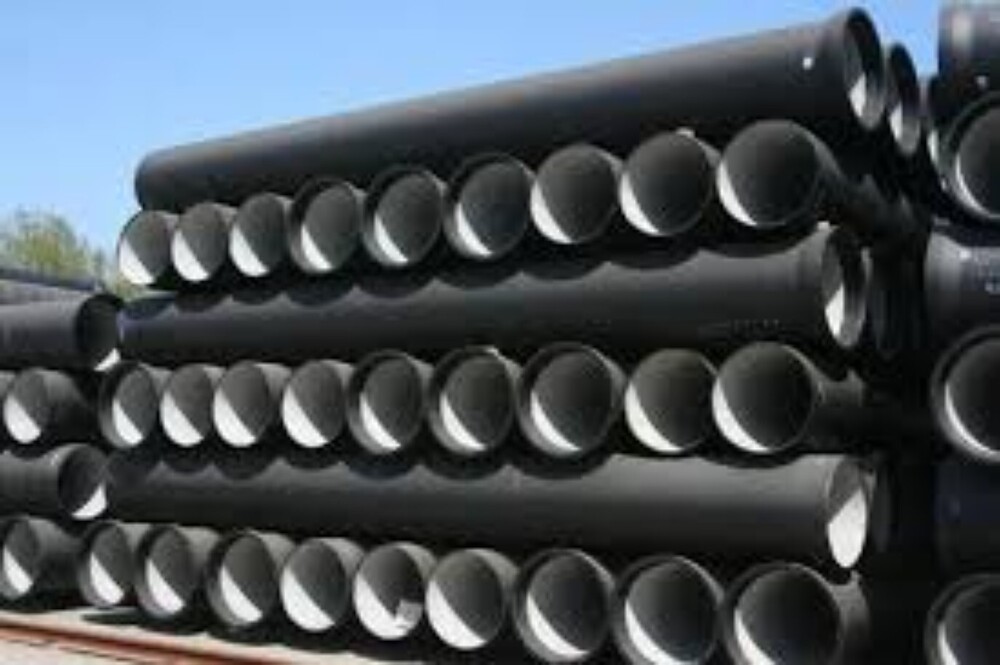

Ductile Iron Pipe - Is:8329 Class K7 & K9, 80 To 1200 Mm Diameter

Ductile Iron Pipe - Is:8329 Class K7 & K9, 80 To 1200 Mm Diameter Price And Quantity

• Minimum Order Quantity 500 Meter
• Price 800 INR/Meter

• Pressure Rating Up to 25 bar (as per class type and diameter)
• Manufacturing Process Centrifugal Spun Cast
• Coating Inside Cement Mortar Lining as per IS 11906
• Application Water Supply, Sewage, Irrigation, Industrial applications
• Coating Outside Bituminous coating at least 70 microns dry film thickness
• Hydrostatic Test Pressure 1.5 times working pressure
• Joint Type Push-on (Tyton), Flanged, and mechanical joints available
• Connection Type Push-on and Mechanical Joints

Ductile Iron Pipe - Is:8329 Class K7 & K9, 80 To 1200 Mm Diameter Product Specifications

• Hardness 187 HB (Max, Brinell Hardness)
• End Protector Socket and Spigot with or without Tyton Joint Gasket
• Standard IS:8329
• Diameter 80 mm to 1200 mm
• Other Material Di, Gasket Rubber
• Thickness As per Class K7 & K9
• Product Type Ductile Iron Pipe
• Surface Treatment Internal Lining Cement Mortar, External Bituminous Paint
• Size 80 mm to 1200 mm
• Tolerance As per IS 8329 standard
• Tensile Strength 420 MPa (Minimum)
• Feature Corrosion Resistant, Leak Proof
• Color Black or as per requirement
• Material Ductile Iron
• Length Standard length 5.5 to 6 m
• Shape Round
• Alloy or Not Is Alloy
• Technique Centrifugal Casting
• Type K7 & K9
• Surface Finish Painted / Black Bitumen Coating

• Pressure Rating Up to 25 bar (as per class type and diameter)
• Manufacturing Process Centrifugal Spun Cast
• Coating Inside Cement Mortar Lining as per IS 11906
• Application Water Supply, Sewage, Irrigation, Industrial applications
• Coating Outside Bituminous coating at least 70 microns dry film thickness
• Hydrostatic Test Pressure 1.5 times working pressure
• Joint Type Push-on (Tyton), Flanged, and mechanical joints available
• Connection Type Push-on and Mechanical Joints

Ductile Iron Pipe - Is:8329 Class K7 & K9, 80 To 1200 Mm Diameter Trade Information

• Supply Ability 1000 Meter Per Month
• Delivery Time 7 Days
• Main Domestic Market All India
• Certifications IS 8329;2000
